60mm FTTH Fast Connect Fiber Connectors Sc Apc Quick Connector
Assembly
FTTH Figure-8 Cable Blue SC UPC Pre-Embeded Fiber Quick
Installation Mechanial Connector 55mm
The FAST Connector is a pre-polished connector which uses
mechanical clamping and aligning of a cleaved fibre end which is
inserted into the connector body. The FAST Connector now mostly is
singlemode fiber 9/125um, multimode can do ,but not so much,
connectors can be SC LC FC ST with different outer apperance and
inner structure.
Filed Assembly Connector Technical parameter:
| Model | YDFIC-D-SU-L | YDFIC-D-SU-S |
| Dimension | 60mm*9mm | 55mm*9mm |
| Insertion loss | <0.5dB, average≤0.3dB |
| Return loss | ≥50dB |
| Fiber type | Single mode, multimode |
| Fiber diameter | 0.9mm, 2.0mm, 3.0mm, 2.0*3.0mm |
| Working temperature | -40 ~+750C |
| Application | Fiber to the home |
| Dimension | 60mm*9mm | 55mm*9mm |
| Standards | ISO9001 |
Drop Cable Fast Connector Features
- Each ferrule has been tested within 0.5dB of insertion loss, reach
TELECOM standard;
- Adopt Three Circle A-class ceramic ferrule, improves product
stability, low loss and small change;
- Large scale production, mature technology, exquisite, which ensure
the quality of connectors;
- It has strong practicability and can be reused for more than 15
times;
- Stable operation performance, low insertion loss, low use cost, low
maintenance rate and fast installation speed;
- Each 100pcs will equip with 1pc length fixing device;
- Humanized structure design: preset limit point of drop cable at the
boot, and automatically generate a small micro bend according to
the correct cutting length of the product (see below figure). The
micro bend indicates that the optical fiber has been in good
contact with the embedded optical fiber, and the micro bend must
exist, but not too large, otherwise the loss during the period will
be affected.

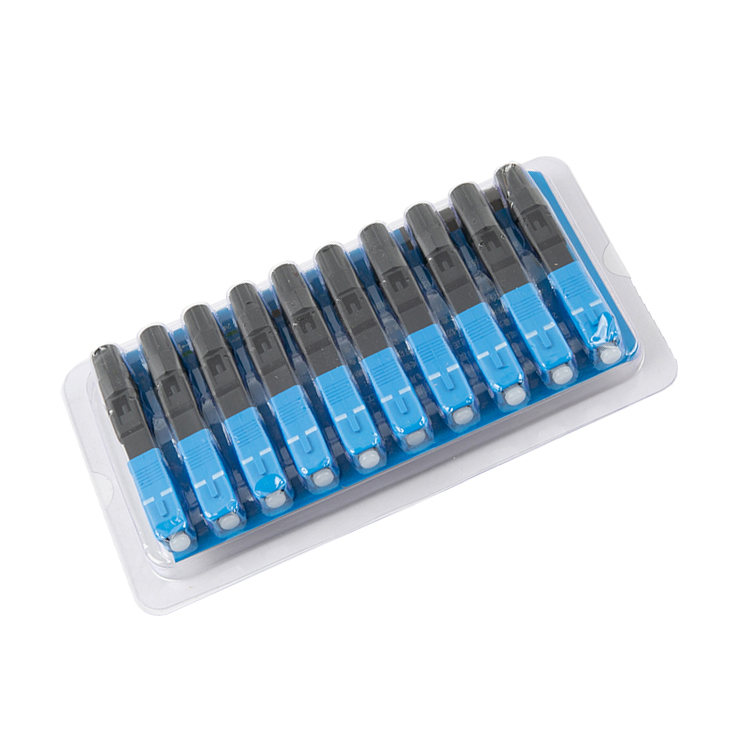

Fiber Optic Connector Package:
Fast Connector Details:
the connector tail is screw nut,after screw off, the boot can be
flip up, after the drop cable insert, then can quickly press it
down to tighten the cable with screw nut.
The fast connector with high quality A class three-circle ceramic
ferrule, which improves product stability, ensure long time low
loss
and small change; ferrule can be UPC or APC.
The connector V groove is plastic, with pre-polished, pre-grinding
embedded fiber inside, there is clear cable fixtion slot.
The fiber clamp devices are made of high-performance materials PEI,
which can effectively prevent the aging of the original components,
and the internal structure with anti loose structure can
effectively prevent the occurrence of excessive fiber connection
loss.
What is the difference of long and short type?
The long type is flat to lay the drop cable and the short type is
vertical to lay the drop cable
Optical Fiber Connector Application:
Broadband campus network, Fiber to the home, Broadband limited TV,
Intelligent broadband, Fiber to the building
Mechanical Connector FTTH Production line:
100% Strict inspection before shipment,check the end face and
Insertion loss data.
