19” 24 Port SC Metal Drawer Sliding ODF Fiber Optic Patch Panel
24 Port SC Fiber Optic ODF Metal Drawer Sliding Fiber Optic Patch
Panel 19”Rack Mount
GPSR series SC rack mount sliding fiber optic patch panels will be
pre-loaded with the SC adapters and splice management kit at
factory, it provides a mean to store the spliced optical fibers in
a neat or orderly manner.
The main features of this rack mount patch panels is the metal
sliding fusion tray which can be adjusted to various working angles
to facilitate installation and maintenance works. Other than this,
the rack mount patch panels have a front cover take off to support
installation and maintenance works.
Specification
| MODEL | GPSR-1U-SA24 |
| Dimension | 430*300*1U mm |
| Max capacity | 24 single fiber |
| Adapter port | SC simplex port |
| Adapter qty | 24pcs SC/APC with flange |
| Thickness | 1.2mm |
| Material | Cold rolled steel sheet, with electrostatic spraying |
| Color | Black RAL 9004 |
| Cable entry | 4pcs, rubber diameter 20mm |
| Net weight | 5.2kg |
| IP Rating | IP20 |
| Operating Temperature | -200C~+700C |
| Standards comply | TIA/EIA 568.C, ISO/IEC 11801, EN 50173, IEC 60304, IEC 61754, EN
297-1 |
fiber pacth panel Features
- Applicable in the termination and 19' or 23” standard structure
- Rack mount in optical distribution frame ODF with mounting ears
with holes
- Suitable for FC,SC,ST,LC,E2000 adapters on request
- 1.2mm Cold rolled steel sheet, with electrostatic spraying;
- Box size: 430*300*1U available, for cost save depth can be 250mm or
200mm;
- Metal sliding tray of the splice tray and bottom, easier and faster
operation without open the cover, and take out for fiber
management;
- Clip cover design, dust proof and whole box closed not in
operation;
- 4 cable entry ports at back with rubber seal to prevent dust, each
port with cable clamps and protection devices
- All the metal parts are stainless steel for long life span
guarantee.
Sliding drawer patch panel ODF product details

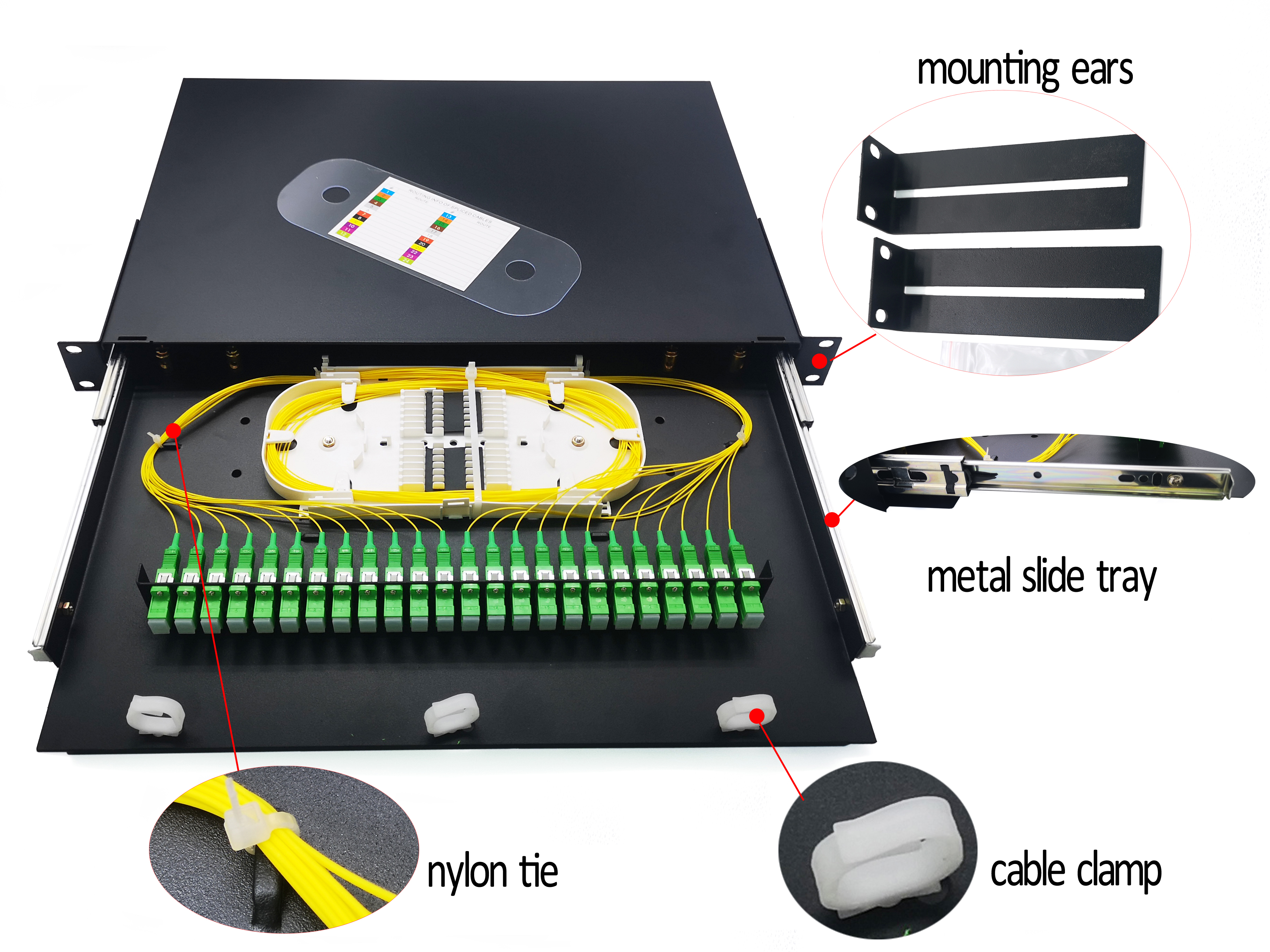

The ODF can install max. 24pcs SC adapters and pigtails, it has
cable clamps, nylon tie for fiber management, and around 1.5meter
length fiber storage space, the metal slide tray make sure fiber
management more easy and convinent; there will be mounting ears at
both sides for 19inch rack mount.

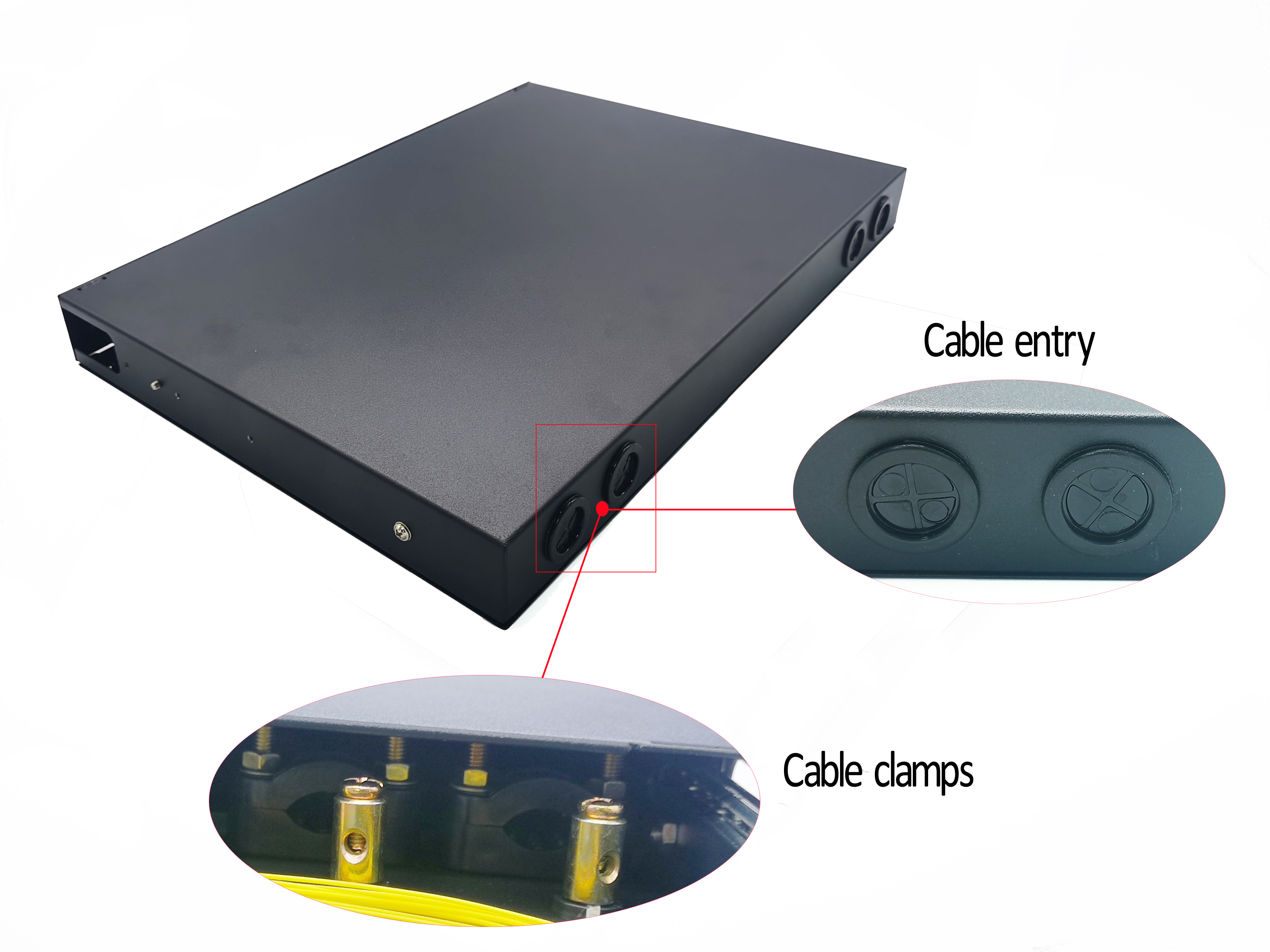

There is total 4 pieces cable entry at back of the ODF with rubber
seal for dust proof, the max. diameter is 20mm. Also after the
cable enter, there will be plastic cable fixtion inside.

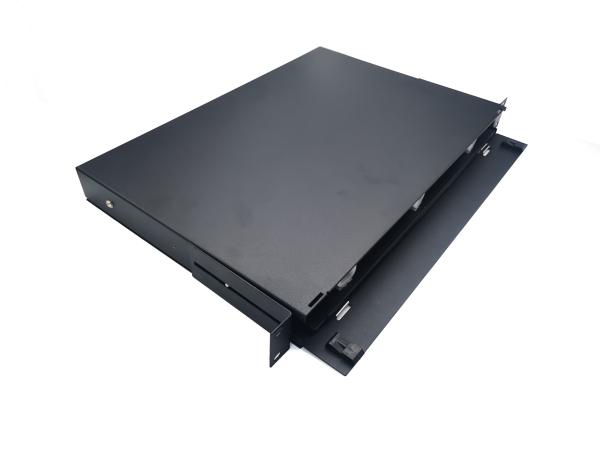

The ODF is totally 19inch, and have a front door with lock, on
operation, just need open the lock then can draw the internal part
out.
Each 24cores will have 1 piece of fusion splice tray with
transparent cover, there is number mark on the cover for better
management and sitribute. Each tray have 24 pcs heat shrink
protection tube slots by 1 layer.
The adapter plate is fixed on the bottom with screws. we can use
12SC, 24SC 48SC, 96SC or 144SC adapters on customer request, ST FC
LC or E2000 is avaialble. All the adapters will be fix on the
adapter plate by screws too. Don't need to worry loss during
transporation.

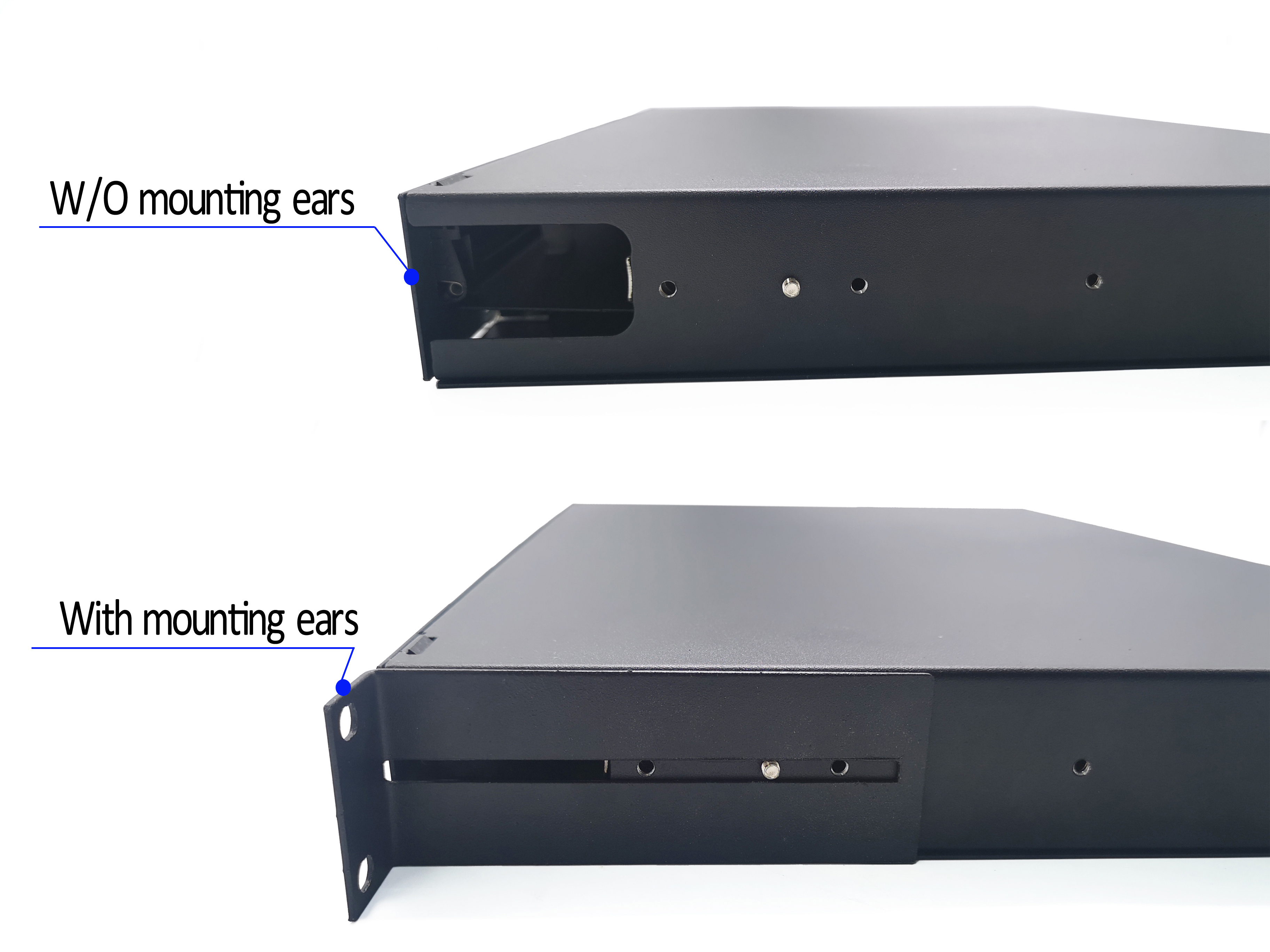

The box will be rack mounted on the optical disstribution frame,
each mounting ears will equipped with 3pcs screws in the accessory
bag.
Pack:1pc/individual cardboard box, in order to protect the box,
will have foams at corners and plastic bag inside.

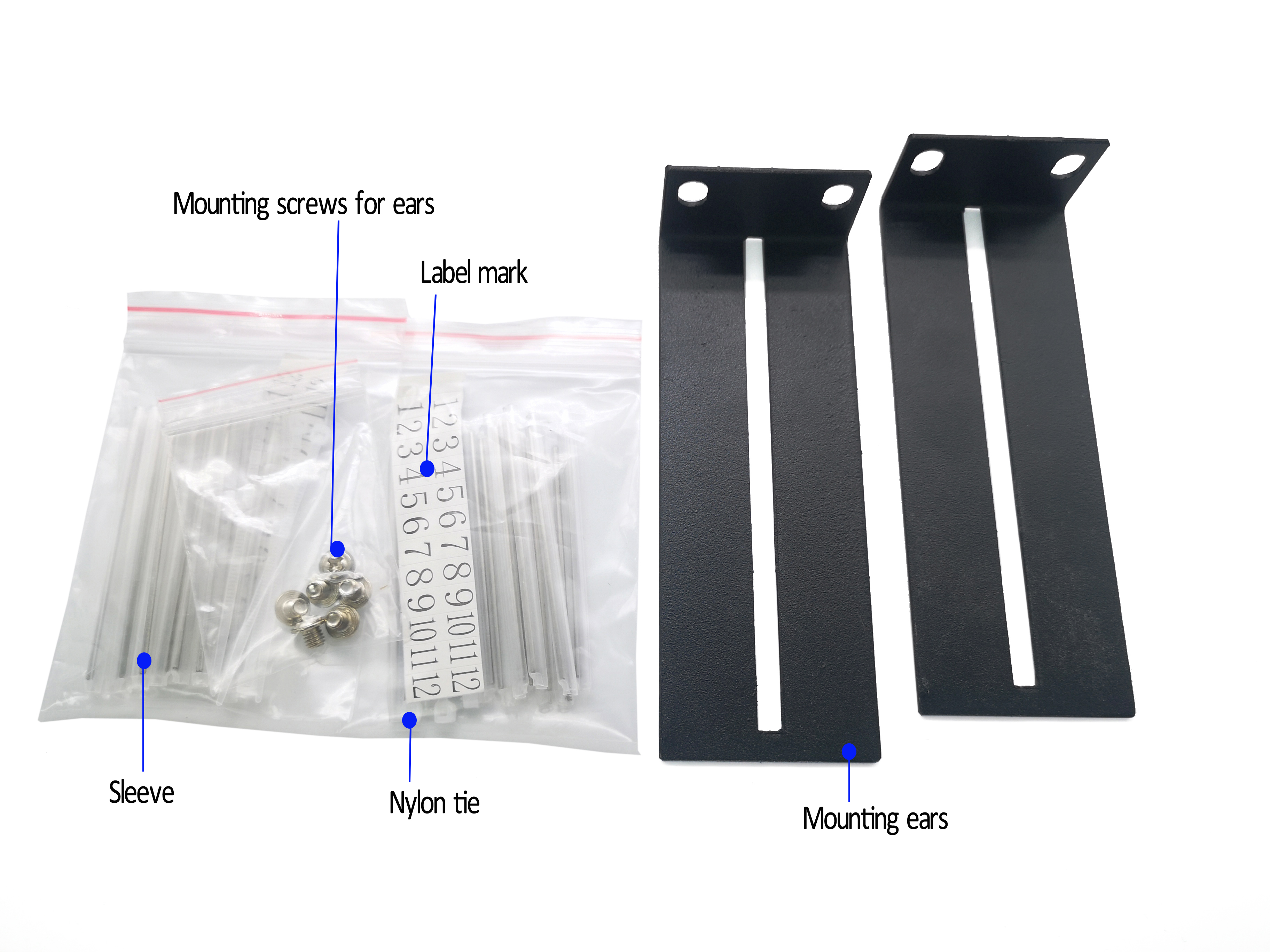

Accessory bag: heatshrink protection tube, nylon tie, mounting ear and screws,
label mark, etc.
Pack information
| Quantity/carton box | Carton size | Weight/carton box |
| 5pcs | 485*420*350mm | 27.5kg |
