12 24 Fibers MTP MPO Fibra Optica Modular Cassette Plastic OM3 10G
Aqua Male Guide Pin

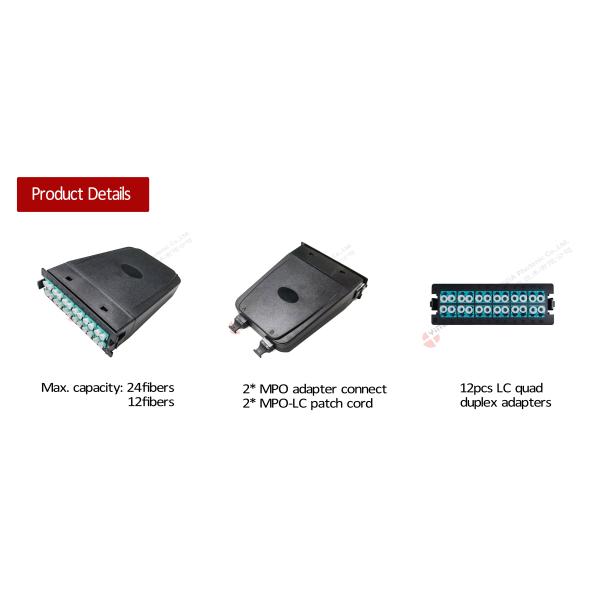

MPO MTP Cassette Modules provide secure transition between MPO to
LC SC direct connetion, they are sued to interconnect MPO backones
with LC or SC patching.
Modular system allows for rapid deployment of high density data
center infrastructure as well as improved trouble shooting and
reconfiguration during moves, add and change, it can be mounted in
1u, 4u 19inch multi-slot chassis.
12Fiber MPO Connector Specification
Parameters | Standard Fiber Cable Assemblies |
Fiber Type | SM(G.652/G.657A) | MM(OM1/OM2/OM3/OM4) |
Jacket Materials | LSZH/OFNR/PVC |
Connector Type | SC/LC/ST/LC/MU/MTRJ/MPO/E2000 |
Ferrule Materials | Ceramic |
Testing Wavelengths | 1310±30/1550±30nm | 850±30/1300±30nm |
Insertion Losss(dB)
TIA/EIA-455-107 | ≤ 0.3dB
(PC/UPC/APC) | ≤ 0.3dB
(PC/UPC) |
Return Loss(dB)
TIA/EIA-455-107 | ≥45dB(PC/UPC)
≥55dB(APC) | ≥35dB(PC/UPC) |
Exchangeability | ≤ 0.2dB |
Cable Assemblies | Pigtail/Simplex/Duplex/Fan-out Patchcord |
Operating Temperature (° C) | -10~ + 70 |
Storage Temperature (° C) | -40 ~ +85 |
Package | 1unit/bag |
*All values specified are with connectors. |
Features
- Male 12fiber MPO connectors used internal
- MTP MPO standard compliant multifibre connecto
- High density, small size, easy and fast installation
- Available Multimode (62.5/125, Standard 50/125 and OM3,OM4) and
Single mode(OS1/2)fiber.
- Factory pre terminated and tested cable and apparatus for instant
field connections with guaranteed quality and performance.
- Metallic shell with high strength protect the inner fibers
effectively
- Supports easy reconfiguration for moves, adds, and changes
- High performance zirconia sleeve adaptors
------------------------------------------------------------------------------------------------------------------------------------------

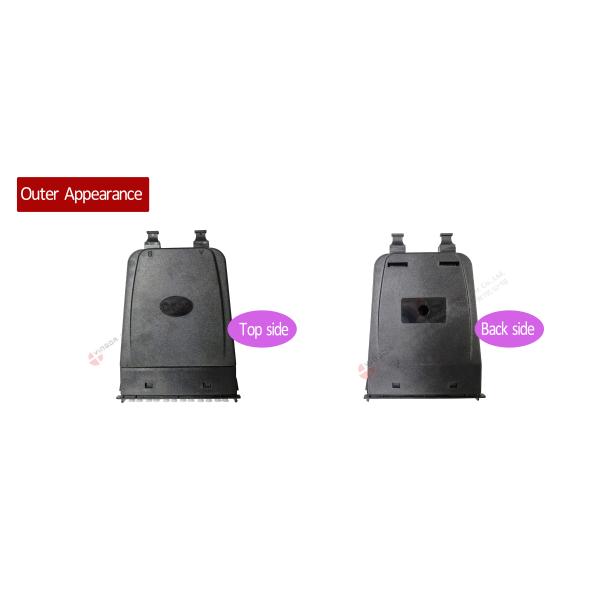

Front side middle can use stickers or silk print customer logo,
part number, etc.
back with empty places to paste stickers too.
------------------------------------------------------------------------------------------------------------------------------------------

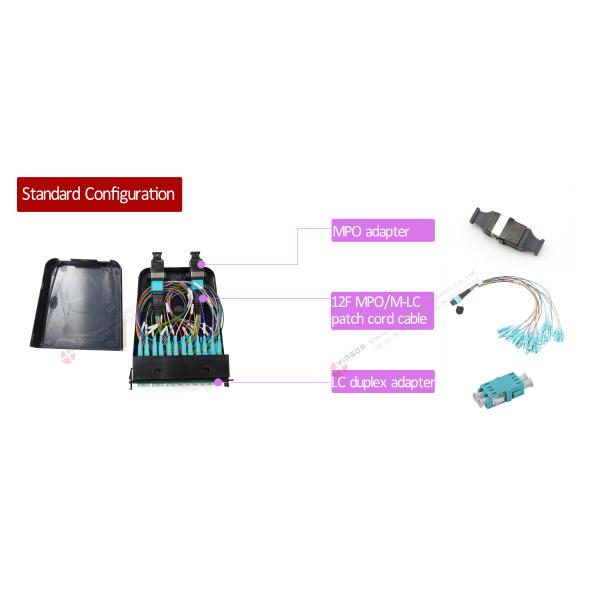

Fully configuration can be done in our factory with patch cord,
adapters, etc.one-stop fiber optic suppliers, which save
construction time and money.
------------------------------------------------------------------------------------------------------------------------------------------
no need screws or other tools to install the modular on the patch
panel, fast and easy to operate.
------------------------------------------------------------------------------------------------------------------------------------------
24 Fiber MPO cassette Application
- Data Centre Infrastructure
- Storage Area Network-Fiber Channel
- Emerging 40 & 100Gps Protocols
- Parallel optics
