650nm 25MW Laser Pointer Fiber Test Toolkit Pen Visual Fault Locator VFL SC

Our light pen advantage

1. light pen don’t have fiber coupling inside, so the fiber end face separate with fiber pen to avoid direct
contact (if direct contact, fiber pen end face is easy to dirty, should clean the fiber again).
2. sufficient power (1-50mW, no less than the power show on the label).
3. the housing is insulate, excellent anti-static effect.


Features

• Fiber breakage, bending fault locatin
• OTDR dead zone fault checking
• End to end fiber identification
• Optimization of mechanical splice point

Specification

Application

1. Telecommunications
2. Broadcasting CATV engineering and maintenance
3. Integrated wring construction and maintenance
4. Optical device production and research
5. Other optical engineering

Usage steps

• Take out of the product from the box and the cloth cover,check outer appearance,

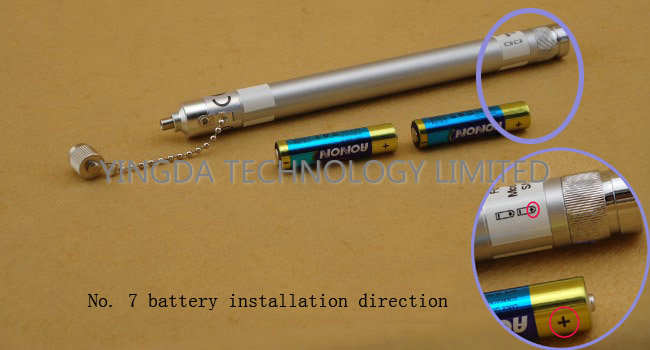

• unscrew the end cap, put in the battery subject to the sticker on the boot.

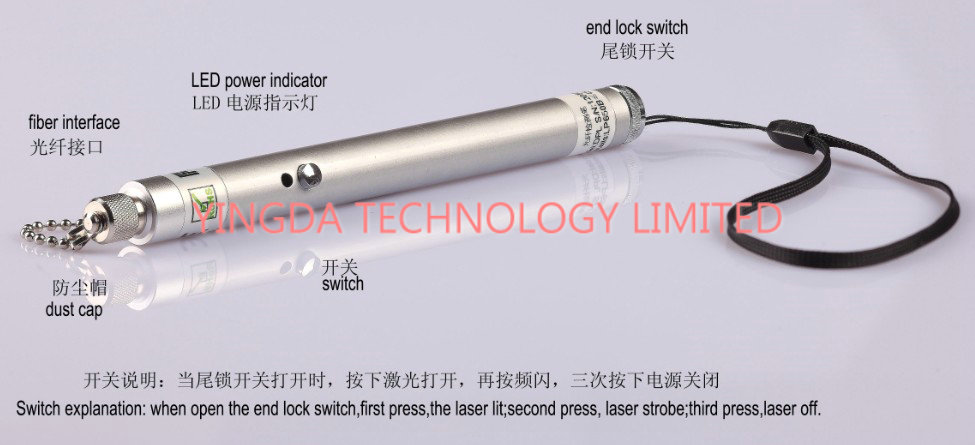

• Screw the end cap,push the end lock switch and connect to the battery current.
• Press the front mode select button.The first press,laser lit;the second press,laser strobe;
• the third press,the laser off.

If test 1.25mm end face, you can buy optional our company 2.5-1.25mmadapter.
During test, please keep fiber end face and the product vertical direction, don’t swing around

(if necessary,use our company fixed adapter to fix the fiber head) so as not to damage the

internal ceramic sleeve. After test,please screw the protective cover.

• When finish test, please press the end lock switch,shut off the battery current. New battery
• can keep lighting for about 3-5hours(the higher the power,the shorter the using time).

Notice

1. If not used for a week, please take out of the battery in case of leakage and damage to the product.
2. After use, please remove the battery in time, cover the optical fiber connector protective cover,
and placed in a ventilated and dry place.
3. Regularly clean optical fiber connector to keep the optical path clean.
4. Please do not disassemble the device, it will affect the warranty.

Solemn promise:

YINGDA absolute guarantee product testing mileage, won't appear no light phenomenon

in the last paragraph.
