1U Rack Mount MTP MPO Patch Panel 19 inch ODF Fiber Optic 4
Cassette MPO LC Cable

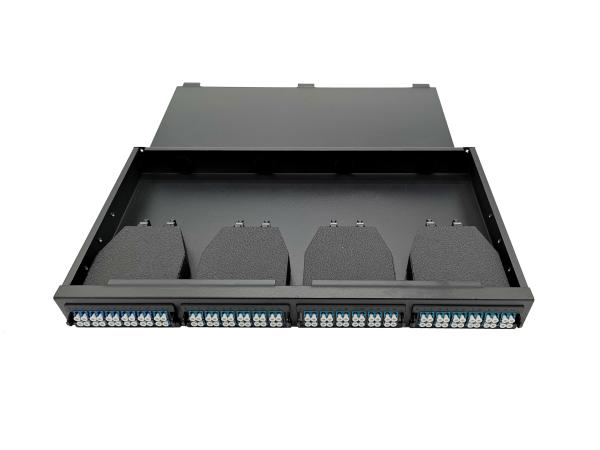

MPO MTP Patch Panel max hold up to 4pcs MPO Cassettes in a 19" rack
mount terminal box, 1U height. The patch panel is rack mount, made
of cold rolled steel with spray surface. The 4 cassettes is easy to
insert and take out by hand, no need screws. It is sound box for
MPO MTP data center application, mix fiber connection, storage and
management in one set. Blank panels are included for unsed
apertures within the patch panel. The 19inch mounting brackets are
adjustable to allow th panel to be set further back in the cabinet
mounting frames, 1U 2U 3U 4U height is available for fiber
expanding.
Specification
| MODEL | GPRM-1U-4LGX/MPO |

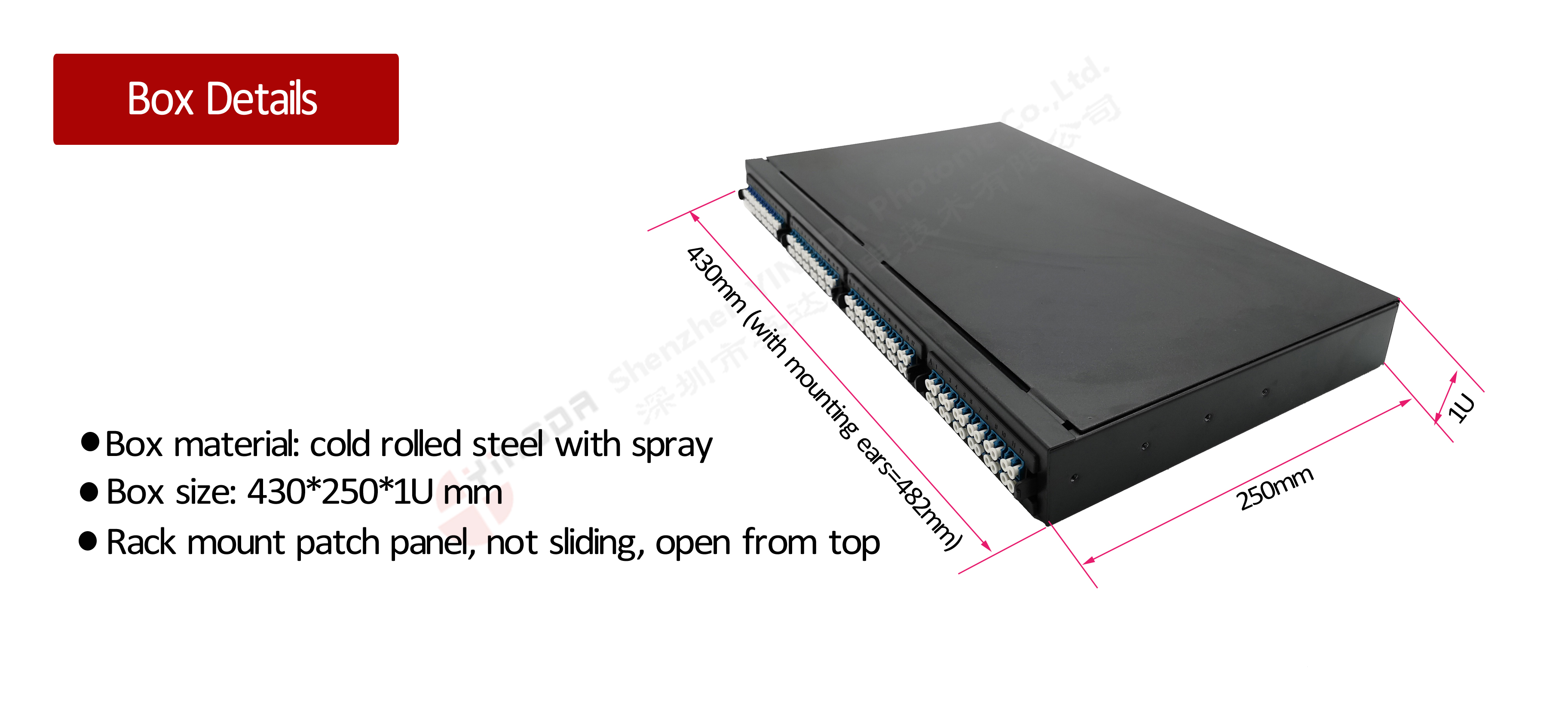

| Dimension | 430*250*1U mm |
| Material | Cold rolled steel |
| Cable ports | 4 in, 96 out |
| Max capacity | 96 Fibers |
| Cassette qty | 4piece |
| Cassette capacity | 24fibers |
| Connector type | LC duplex coupler |
| Color | black |
VIDEO of PATCH PANEL
Features
- Easy for installation and operation
- 19'' standard structure
- Rack mount in ODF frames
- Available for the installation of FC/SC/ST/LC adapters
- FTTX FTTH solutions
1U rack mount patch panel, suitable for all19inch rack mount
optical districution frame, use mounting ears at both sides to fix
on ODF.
-----------------------------------------------------------------------------------------------------------------------------------------
Cable entry quantity and the cable diameter can be customzed on
customer request, all port will be confiuration with rubber seals
for dust proof.
-----------------------------------------------------------------------------------------------------------------------------------------

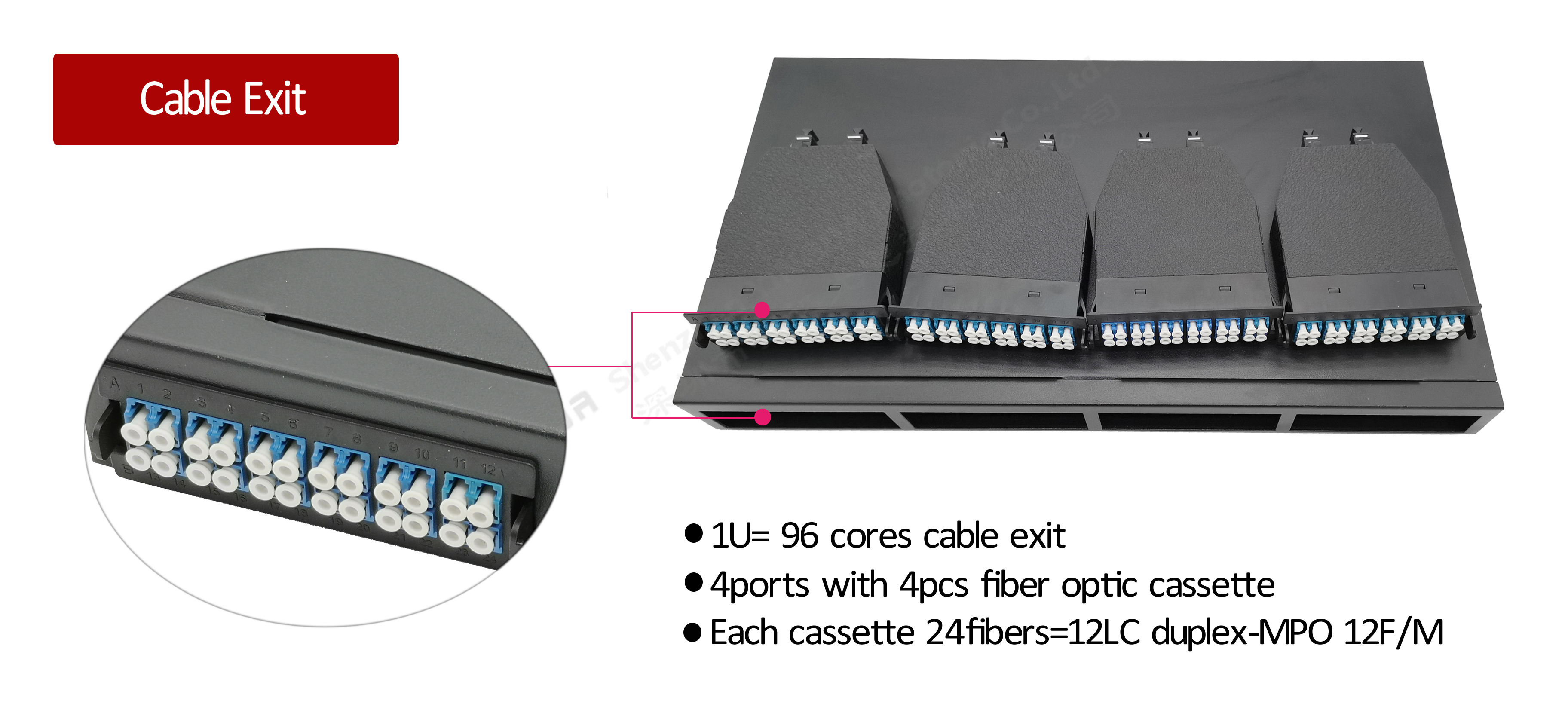

Each patch panel is 96cores fiber optic pigtails distribution in
front, meet large capacity for data center network application.
-----------------------------------------------------------------------------------------------------------------------------------------
24 Fibers Optical MPO cassette use special materials, and lc duplex
adapters without flange in front, back is 2pcs MPO 12 cores adapter
A B, inside hold 0.34meter MPO LC patch cord, this cassette can use
8fibers MPO x3pcs, 24fibers MPO*1PC instead.
-----------------------------------------------------------------------------------------------------------------------------------------
Standard items to configurate
This patch panel can fully load with 8pcs MPO-mpo truck cable, 8pcs
12cores MPO -LC patch cords, 8pcs MPO MTP adapters, LC duplex
adpaters 12*4 = 48pcs, if customer need, we can pre-terminated
cable assembly in factory and pack them well before delivery.
Application
- Data communication applications
- Data Centre infrastructure
- Storage Area Network-Fiber Channel
- Emerging 40 and 100Gbps Protocols compatible
