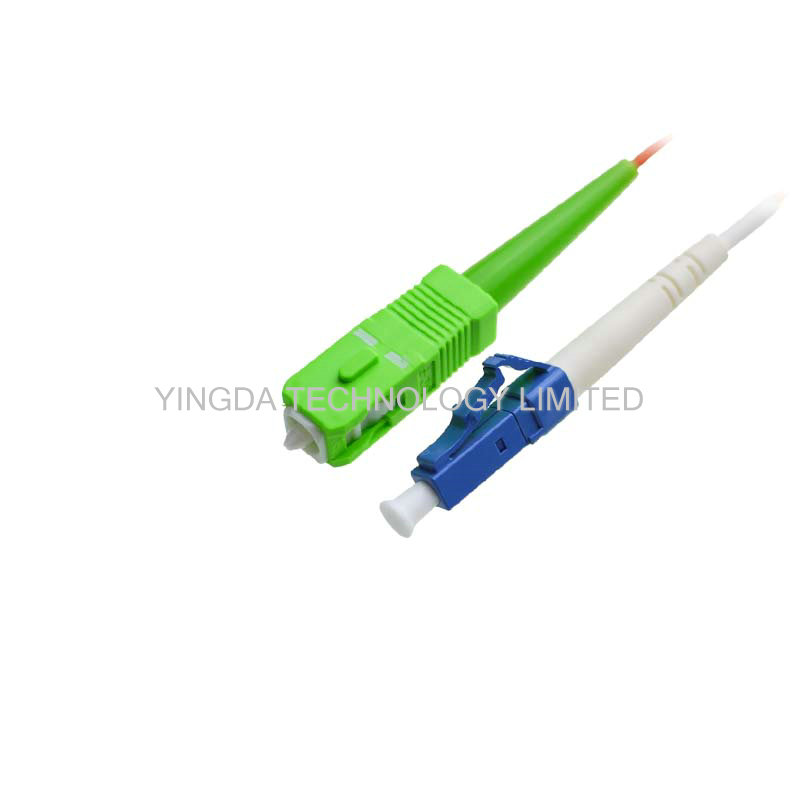

SC to LC Fiber Optic Patch Cable MM62.5/125um OM1 Mulitmode PVC 2.4mm, SC / LC Patch Cord

Features

• Low insertion loss
• Repeat ability
• High return loss
• Mutual Insert performance
• Good temperature stability
• Strong tensile property
• Cheap multimode fiber price,short distance transmission
• Wide transmission bandwidth

Fiber optic patch cord also called jumper, it is the connection cable between the equipment and fiber

optic cabling wiring. It has a protective layer jacket, generally used in optical transceivers and terminal

boxes.

Fiber jumper (also called optical fiber connector) have connectors on both ends, used to achieve the

optical path movable connected; If only one end with connectors called pigtail. Optical fiber jumper

(Optical Fiber Patch Cord/Cable) and similar to coaxial cable, but no have net shielding layer. The

center is the light transmission glass core(ferrule). In multimode fibers, the diameter of the core is

50 mu m~65 mu m, roughly equal to the human hair thickness. While the single mode fiber core

diameter is 8u m~10u m. The core is surrounded by a layer of glass coating whose refractive index

is lower than the core, in order to make the optical fiber holding in the core. Outside is a thin layer

of plastic jacket to protect the coating.

According to the transmission media Fiber jumper can be divided into single mode, multimode optical

fiber jumper, and other transmission media such as plastic jumper. According to connector type, it can

be divided into: FC jumper, ST jumper, SC jumper, LC jumper, MTRJ patch cord, MPO patch cord jumper,

also MU, SMA, FDDI, E2000, DIN4 D4 jumper and so on. Most commonly used is FC-FC, FC-SC, FC-LC,

FC-ST, SC-SC, SC-ST fiber optic patch cord.

Specification

Application

1. Fiber communication system
2. Fiber access network
3. Data transmission
4. CATV
5. LAN
6. Test equipment
7. Optical fiber sensor

Order information

1. Connector type: FC, ST, SC, LC, MU, MPO, E2000, MTRJ, SMA,

2. End face: UPC PC APC

3. Cable diameter: Ф0.9mm, Ф1.6mm,Ф1.8mm, Ф2mm, Ф2.4mm, Ф3mm.

4. Fiber count: simplex, duplex, 4 core, 6 core, 8 core, 12 core or customer specified

5. Fiber types: G652B, G652D, G655, G657A1, G657A2, 50/125,um 62.5/125um,

OM3 (50/125-150), OM4 (50/125-300) etc.

6. Connector housing color: Blue (single mode PC, UPC connector), beige, grey (multimode connector),

green (APC connector), aqua (OM3)

7. Boot color : grey,blue, green, white, red, black, green

8. Cable jacket: PVC, LSZH

9. Cable length: customized
