FTTH 1 Port Slide In Lock Socket Panel SC Fiber Optic Termination Box ABS White Wall Mount Box

Plastic ABS material socket panel FTB86D is a compact size fiber terminal for use at the final fiber

termination point in the customer premises. It provide mechanical protection and managed fiber

control in an attractive format. A variety of possible fiber termination techniques are accommodated.

Features

1. Splicing to factory terminated pigtails
2. Positive fiber management
3. Direct termination with field installation connectors
4. Attractive design for indoor use
5. Can hold up to 4 mechanical splicer, fusion splice protectors or mechanical SC connectors
6. Splice cable to cable
7. Compatible with 2 SC simplex adapters/LC duplex adapters
8. Multiple cable entry points(cable diameter ≤6mm
9. Can be wall mounted and mounted on wall boxes with fixation points of 60mm

Specification

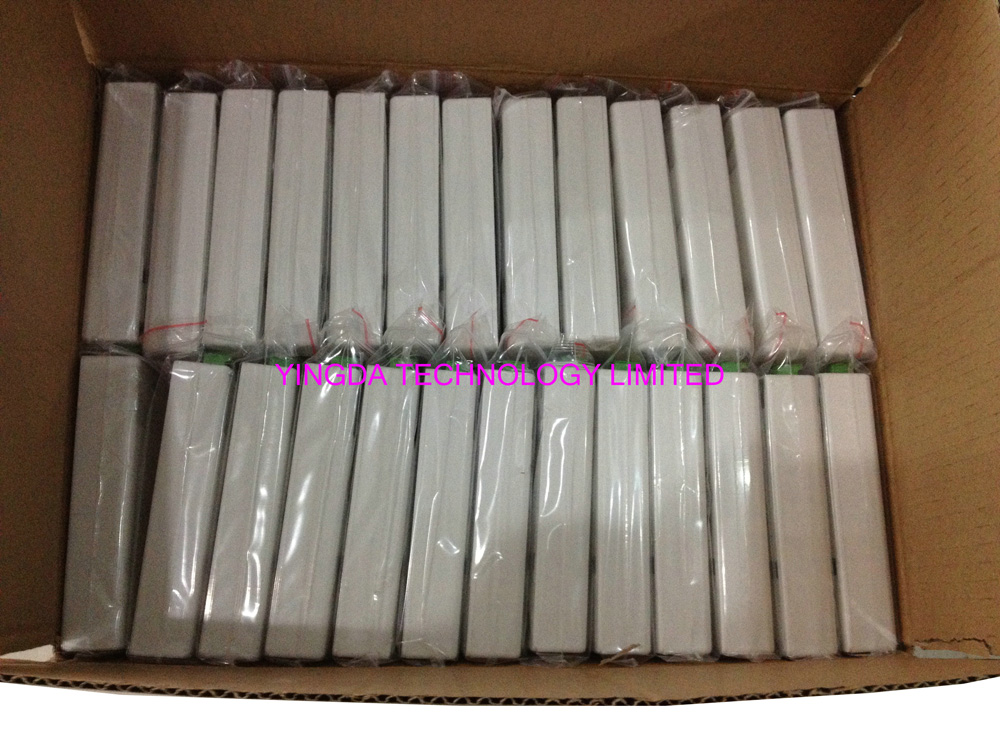

Pack information

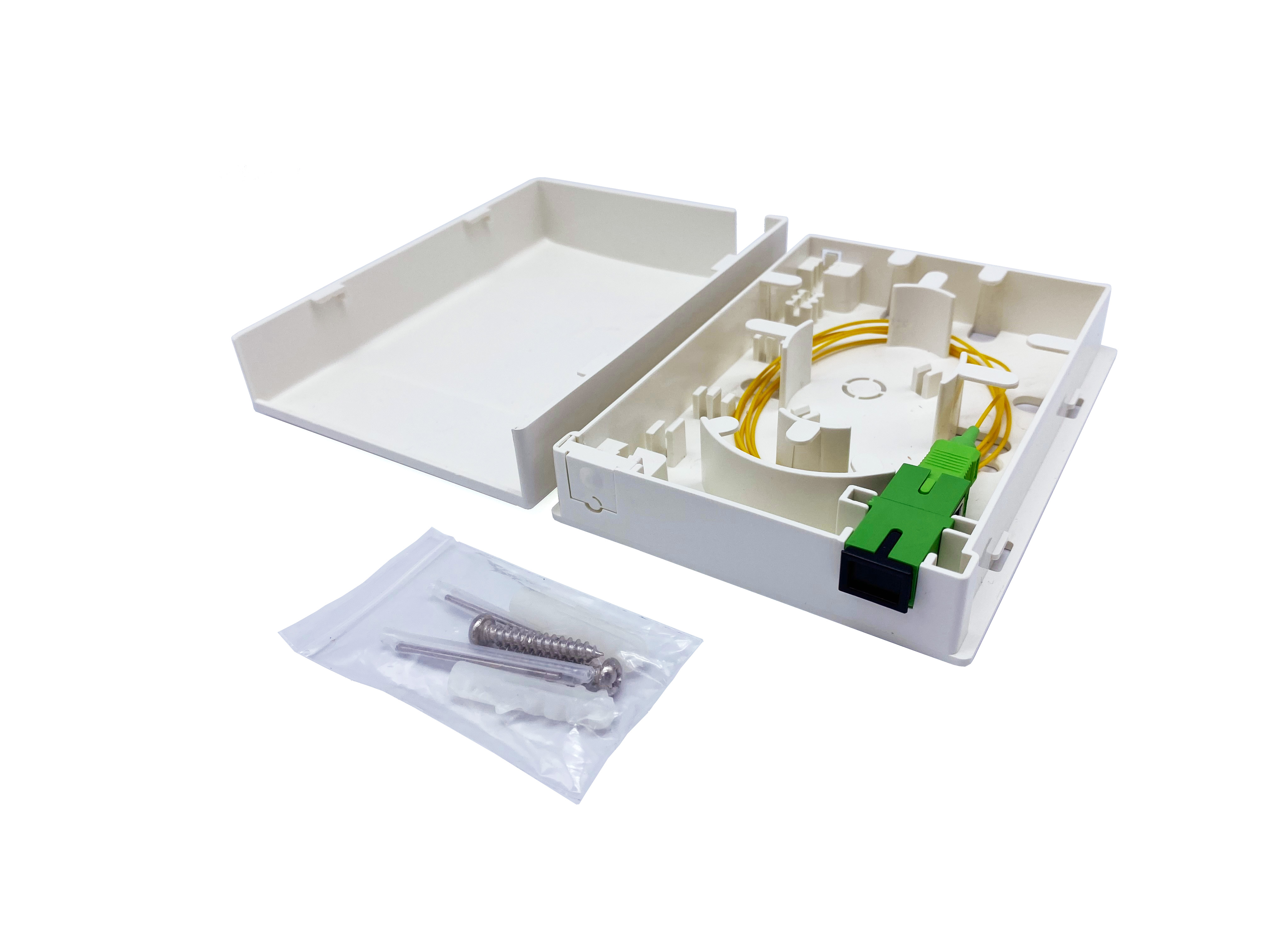

Kit content

More product show:

1. ABS empty box white color

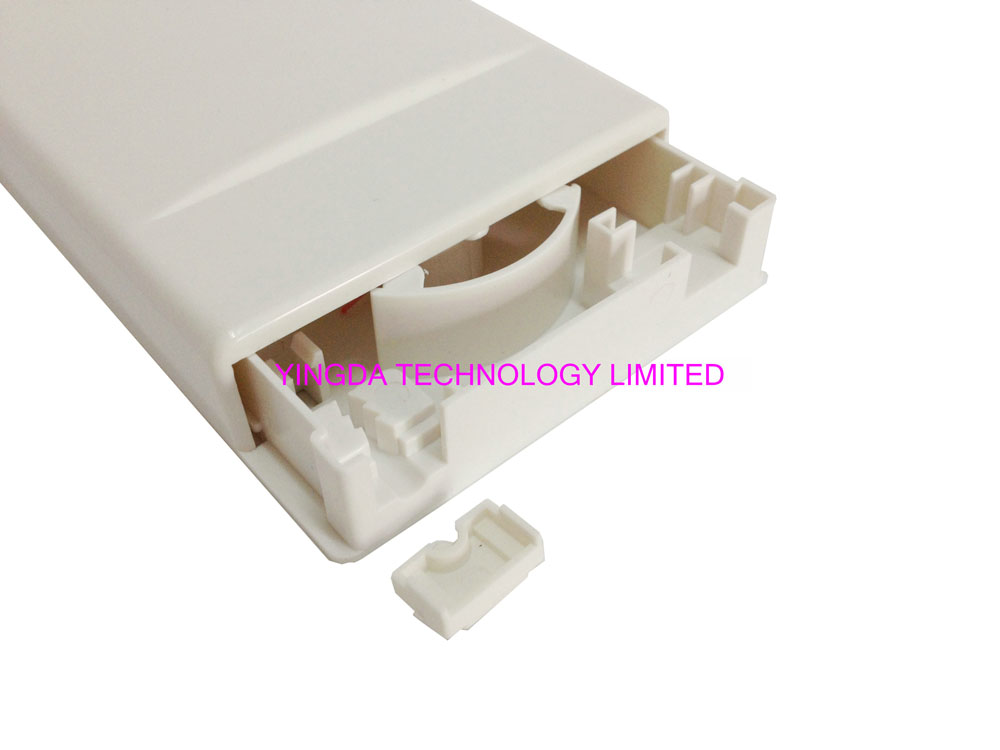

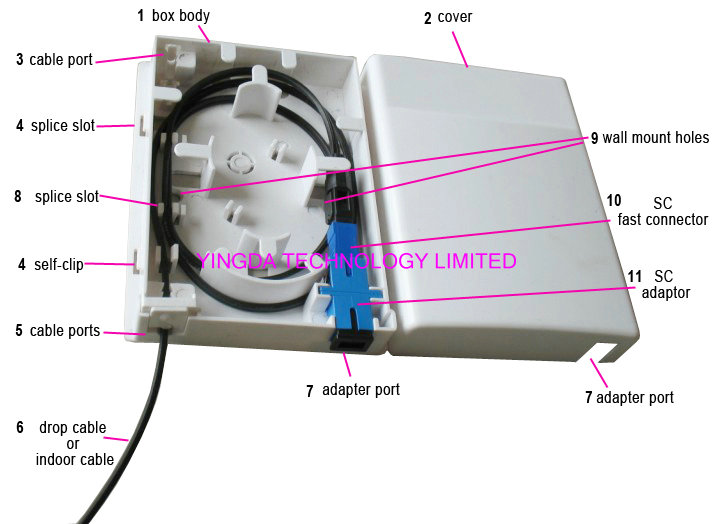

FTB86D socket panel front: 1port for cable entry, 1 port for SC adapter

the whole box is slide in clock, with self-clip design, no need keys or wrench, easy to open and close. totally closed.

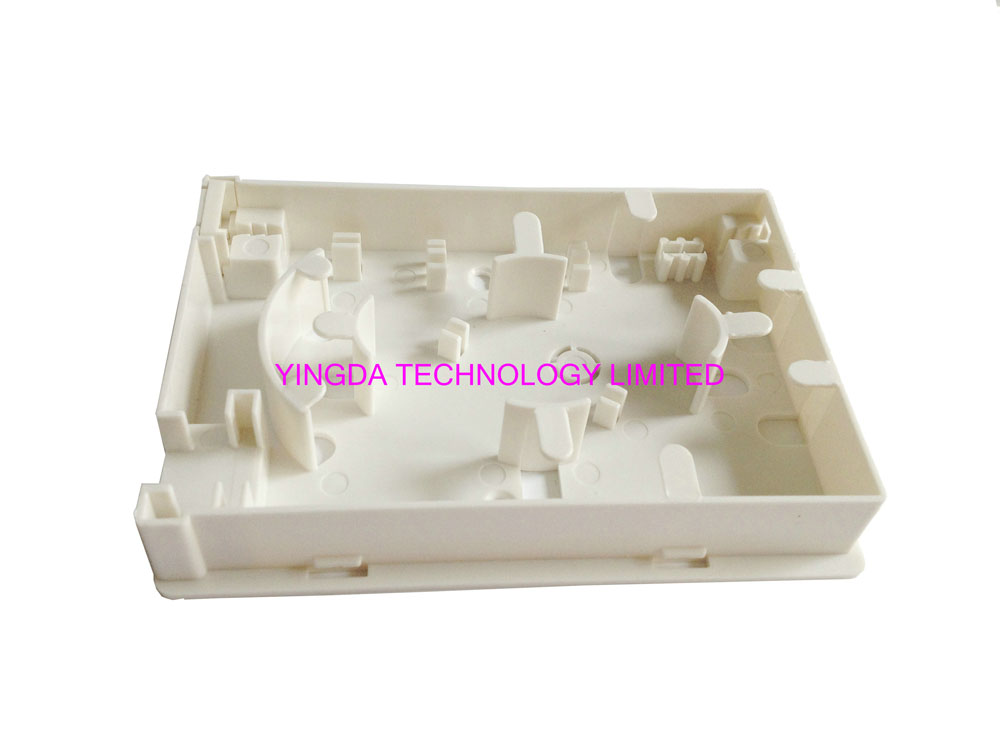

this fiber optic termination box body have fiber cable routing place and enough space for fiber storage;

it is long enough to put a sleeve 60mm or mechanical splicer, it is longer than the normal desktop 86*86mm faceplate;

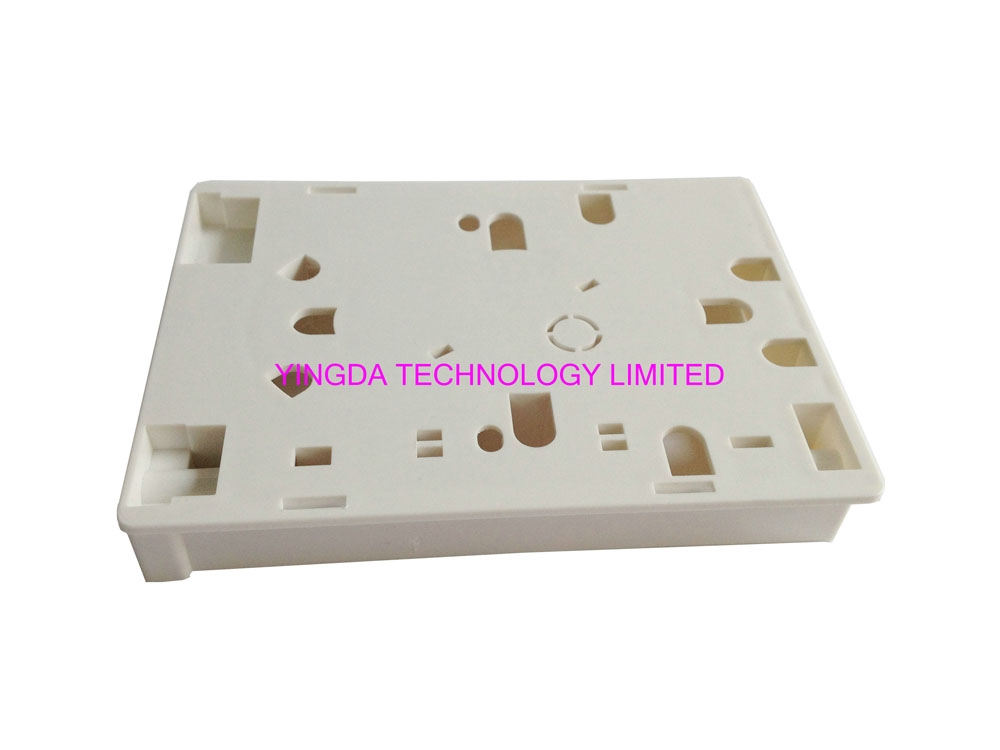

it has 2 pieces of round wall mount holes for expansion screws.

cable prots with block, and all box is equipped compliant screws for installation.

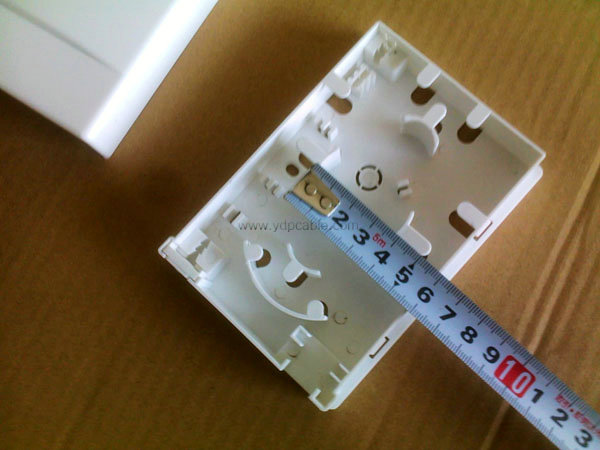

2. The width of the customer terminal box

3. end user terminal box inner size
